BLOOD PLANT
A & S THAI WORKS CO., LTD
Continuous drying of fresh blood to blood meal.
Blood is a valuable, high protein (~ 80%) raw material, but with high water content and low meal yield, typically 13-15%.
Blood meal is sold to animal feed producers (feed mills), or mixed in with the meat and bone meal process.
Using a decanter and a disc drier, ASTW provides a cost-effective method for the production of blood meal.
The indirectly heated disc dryer gives a continuous drying process, specially designed to handle difficult and sticky materials

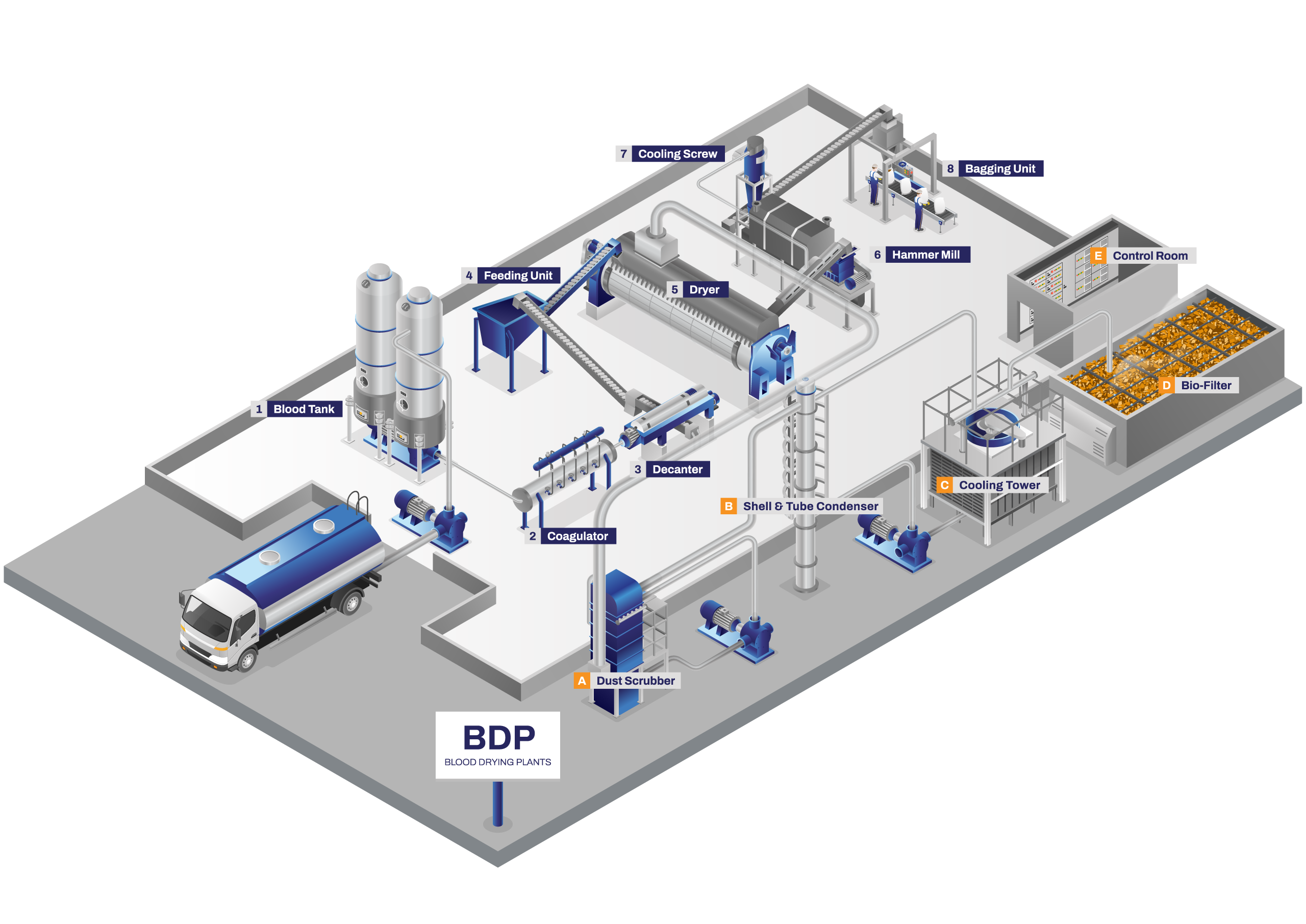

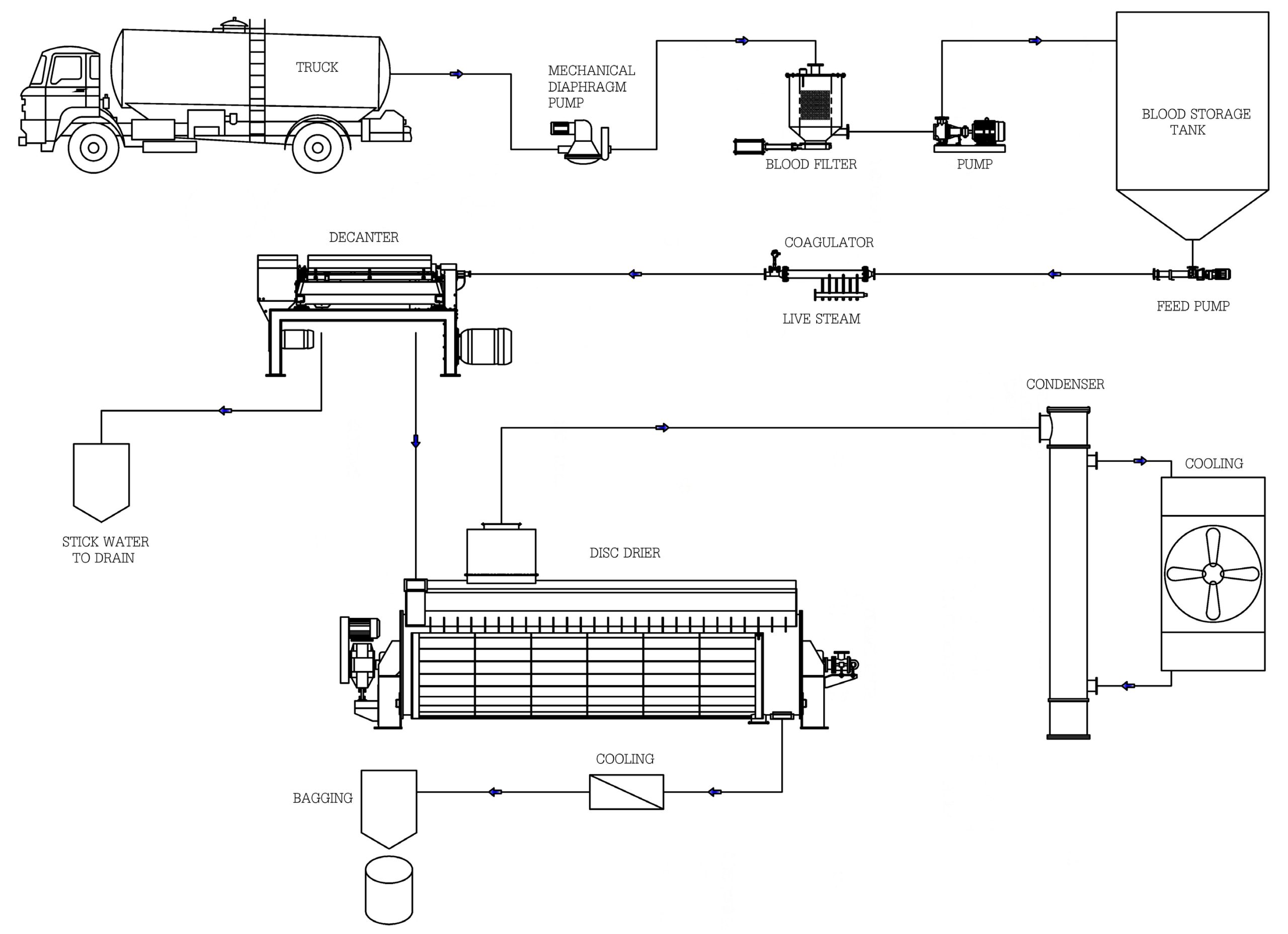

The Blood drying plant includes the following steps:
- Unloading from truck using mechanical diaphragm pump.
- Blood filter, automatic, self-cleaning.
- Second pump transport to blood tank.
- Storage in stainless tank for up to 24 hours.
- Feed metering pump to the process.
- Live steam-heated controlled coagulator (ASTW vortex design).
- Decanter for solids separation. Stick water is thrown away to waste water plant.
- Drying to blood meal in steam heated stainless steel disc dryer.
- Meal handling, cooling, hammer milling and bagging.
- Vapor cleaning in dust water scrubber, condensing of vapor in a shell and tube condenser with cooling tower, optional bio filter to remove final smell

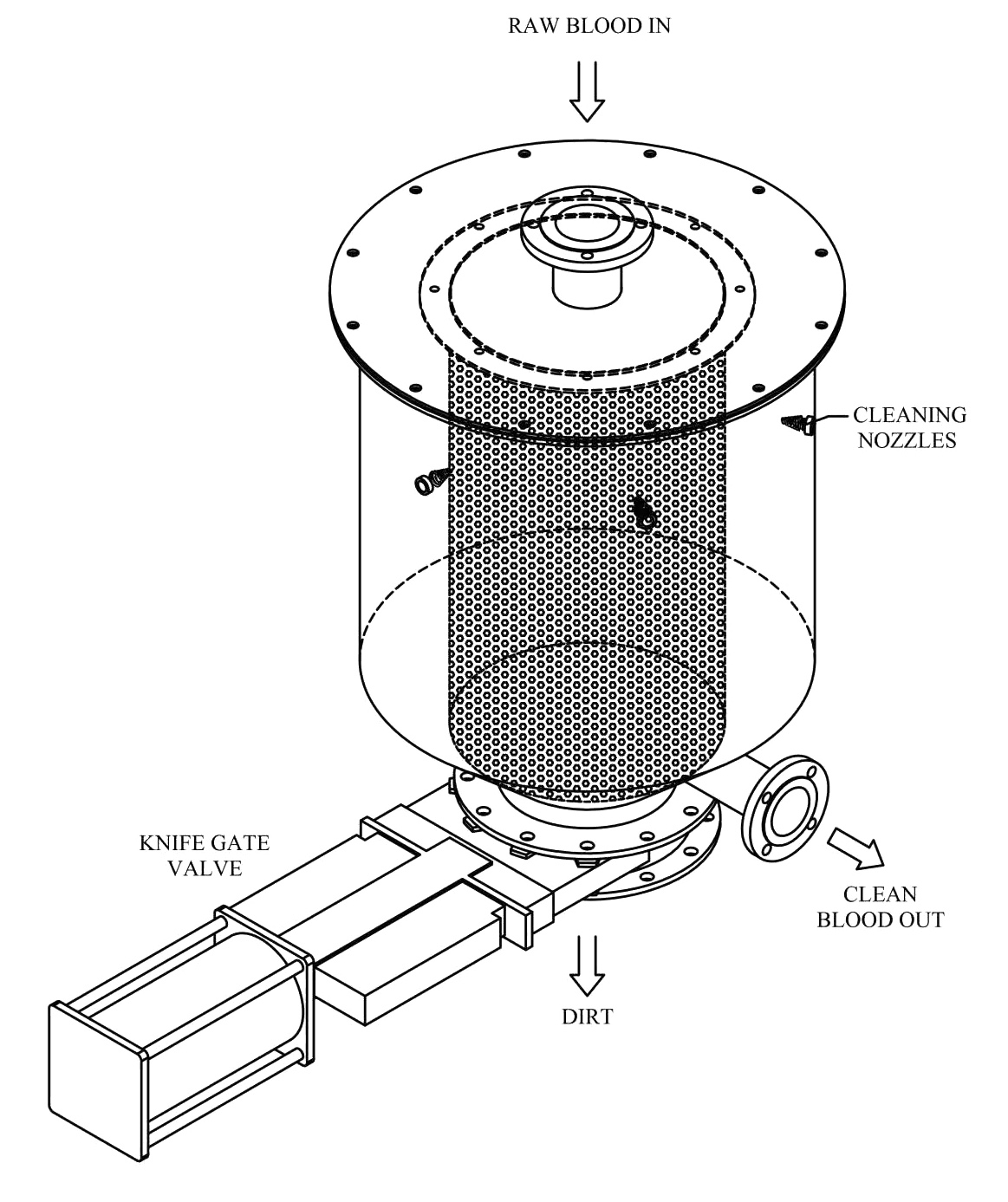

Blood filter:
- Large screen filter to separate lumps, wool, hair and scrap from the raw blood.
- To be installed between truck and storage tank using two pumps.
- The cleaning cycle is fully automatic and adjustable with timers.
- Interval cleaning is by means of high pressure sprays nozzles.
- The unit can be positioned over raw material bin.
- All stainless design.
Standard Solution Technical Specification for Blood Drying Plants – BDP
Technical Specification: ASTW LEAN FISH PLANTS (LFP) – the figures are estimates
| Plant size | Capacity tons input per 24 hr | Steam Consumption ton/hr | Recommended boiler size ton/hr at 10 bar | Electric Consumption in kW Installed/load 70% |
|---|---|---|---|---|
|
LFP 24 |
24 - 30 tons |
0.9 |
1.2 |
60/42 |
|
LFP 55
|
55 - 60 tons |
2.1 |
2.5 |
107/75 |
|
LFP 90 |
90 - 100 tons |
3.4 |
4.5 |
142/99 |
|
LFP 120 |
120 - 140 tons |
4.5
|
6.0 |
180/126 |
|
LFP 160 |
160 - 180 tons |
6.0 |
8.5 |
235/165 |
