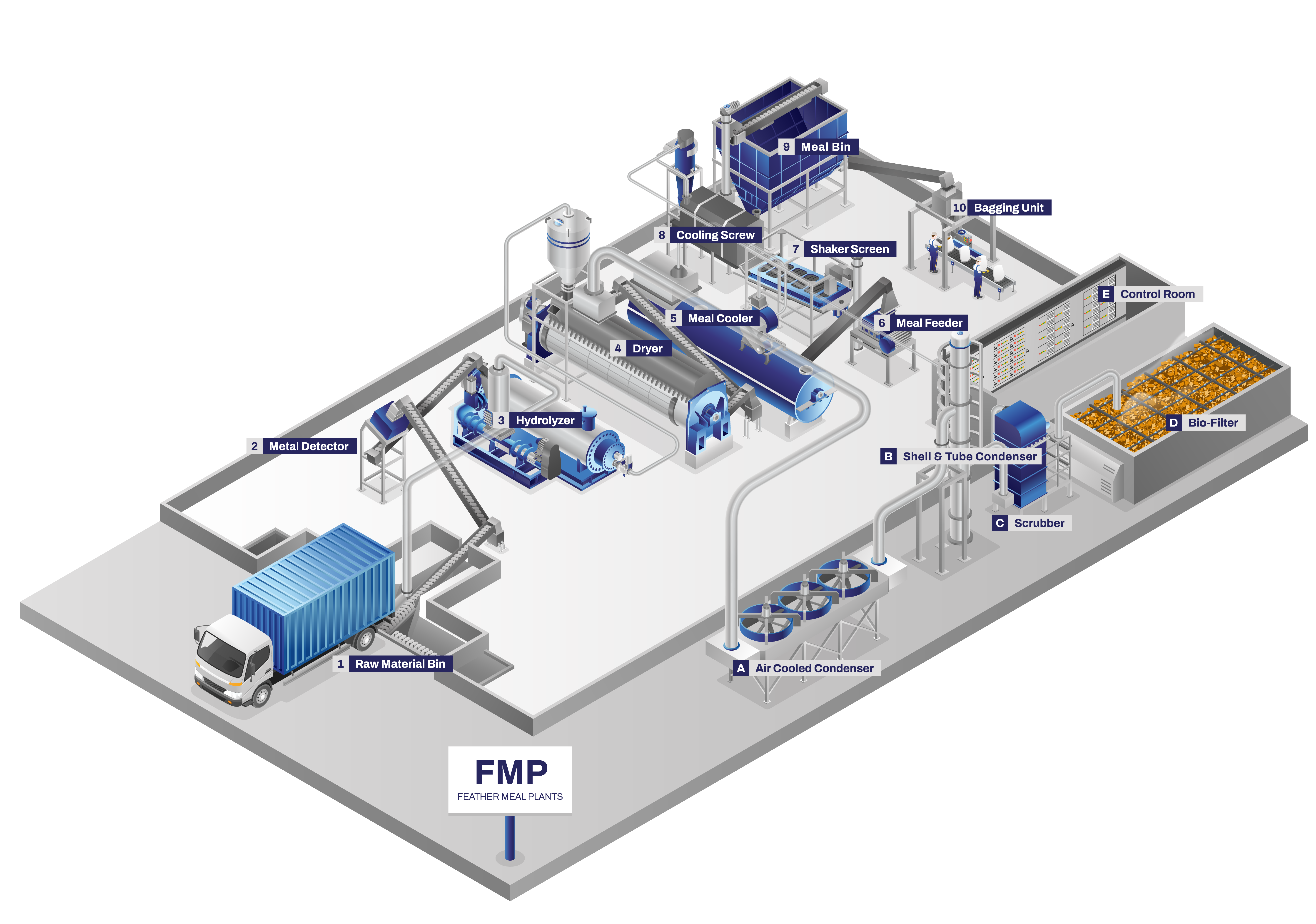

FEATHER MEAL PLANT
A & S THAI WORKS CO., LTD
The batch cooker has been used in the rendering industry since the 1940s.
It is a simple steam heated machine with a jacketed cylinder and a mixing rotor that can process, cook and dry materials in “one batch”
- Mixed meat and meat, bone and intestines (high temp drying) fry and dry the material in oil bath at 135 deg C, to be used with high pressure press
- Mixed poultry offal = offal and feathers mixed together (hydrolyzing and drying) => meal for animal feed and tallow/chicken oil, with high pressure press
- Feathers (hydrolyzing and drying) => feather meal for animal feed
- Blood (cooking and drying of decanter cake) => blood meal for animal feed
- Wool and hair from processing of sheep, hog (swine) (hydrolyzing and drying) => feed back into the rendering process
Today batch cookers are used mainly for small, low cost rendering capacities, while continuous systems are being used for larger capacities. For feathers, the batch cooker is sometimes used together with a more efficient disc dryer and increase capacity about 30%.
Batch process includes the following steps: Feathers, wool and hog hair:
- HYDROLYZING and drying in a batch cooker at internal pressure about 3 bar for 20 minutes to make the feathers digestible – (pressure and time can vary)
- Hydrolyzing and then drying in a disc dryer
- Cooling of meal and hammer milling
For Mixed meat, bone and intestines the batch cooker will act as a HIGH TEMP frying pan where the material is cooked and dried in a high temperature oil bath, up to 135 deg C. Then the hot material is pressed in a high pressure press where the tallow/fat/oil is separated.
The batch cooker design has a heated shell with a steam jacket and a heated mixer rotor. There is an inlet chute and
a bottom outlet, both with knife gate valves. The body is designed to withstand internal pressure up to 5 bar (operation 3 bar)
ASTW make three most common sizes;
– 5,000 liters, popular name 5 x 12 foot batch cooker
– 10,000 liters, popular name 5.5 x 18.5 foot batch cooker
– 1,700 liters, popular name 3 x 9 foot batch cooker,
2 options! a) normal batch cooker. b) no jacket, injection of live steam for hydrolysis of wool and direct injection into dryer
Technical data:
| Dimension mm. | BC 1,700 liters | BC 5,000 liters | BC 10,000 liters |
|---|---|---|---|
|
Body diameter
|
950 |
950 |
950 |
|
Body length flange to flange |
3000 |
3000 |
3000 |
|
Total installation length
|
5500 |
5500 |
5500 |
|
Total installation width |
1400 |
1400 |
1400 |
|
Total installation height |
3200 |
3200 |
3200 |
|
|
|||
|
Internal pressure in body |
5 bar |
5 bar |
5 bar |
|
Design pressure |
7 bar |
7 bar |
7 bar |
|
Content |
11 m2
/live steam* |
29 m2 |
50 m2 |
|
Power |
11 kW |
37 kW |
75 kW |
|
Shipping weight |
6 tons |
14 tons |
24 tons |
Material to be processed in kg: (filling values may vary)
Mixed meat and bone
and intestines
(cooking and drying
only)
• BC 1,700 = 900 kg
• BC 5,000 = 2,800 kg
• BC 10,000 = 5,200 kg
Mixed poultry offal
(offal and feathers
mixed together)
(hydrolyzing and
drying)
• BC 1,700 = 900 kg
• BC 5,000 = 2,600 kg
• BC 10,000 = 5,200 kg
Feathers (hydrolyzing
and drying)
• BC 1,700 = 850 kg
• BC 5,000 = 2,400 kg
• BC 10,000 = 4,000 kg
(*Note that with a disc
dryer the total capacity
will increase about 30%)
Blood (cooking and
drying only)
• BC 1,700 = 700 kg
• BC 5,000 = 2,000 kg
• BC 10,000 = 4,000 kg
Wool and hair from
processing of sheep,
hog (swine)
(hydrolyzing and
drying)
• BC 1,700 = 780 kg
• BC 5,000 = 2,300 kg
• BC 10,000 = 4,600 kg
