OILY FISH PLANTS
A & S THAI WORKS CO., LTD
For fish and fish waste with more than 3% oil content. Produces high quality fishmeal and fish oil

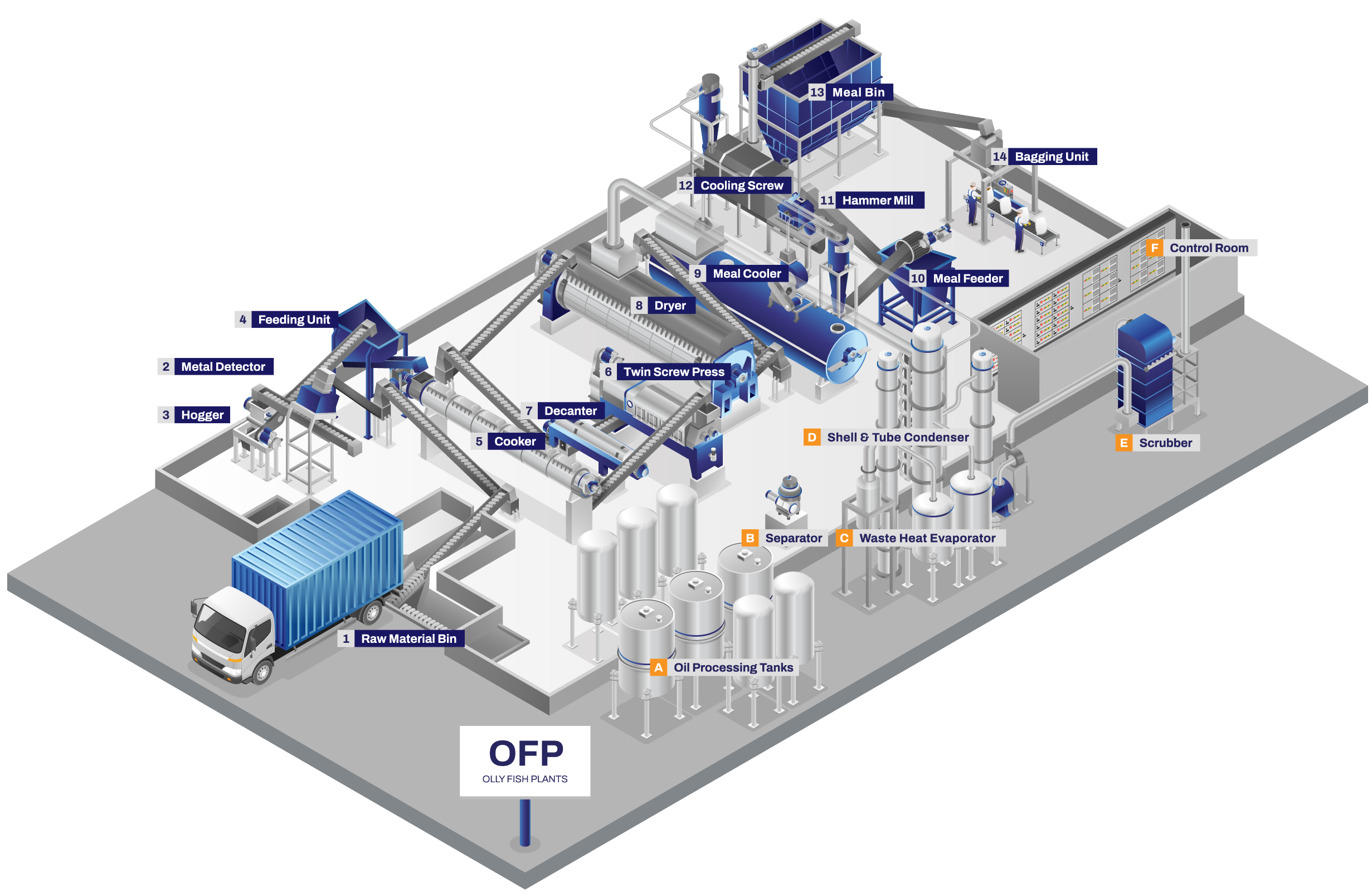

The OFP – Oily Fish Plant uses the same components as the LFP – Lean Fish Plant but with addition of a cooker, twin screw press, solid/liquid decanter separator, oil separator, plus pumps and tanks.
The plants are a modern design that will operate continuously for years and provides easy operation, low energy consumption, low maintenance and long life time. ASTW also provides excellent after sale service and carry a supply of spare parts in stock. All designs are based on Stord Norway technology.
A Waste Heat Evaporator (WHE) can be included for plants larger than OFP 55 to save 40% steam.
Technical Specification: ASTW OILY FISH PLANTS (OFP)
| Plant size | Capacity tons input per 24 hr | Steam Consumption ton/hr | Recommended boiler size ton/hr at 10 bar | Electric Consumption in kW Installed/load 70% |
|---|---|---|---|---|
|
OFP 24 |
24 – 30 tons |
0.9 |
1.2 |
160/112 |
|
OFP 55 |
55 – 60 tons |
2.1/1.4 WHE
|
2.5 |
195/136 |
|
OFP 90 |
90 – 100 tons |
3.4/2.0 WHE |
4.5 |
260/182 |
|
OFP 120 |
120 – 140 tons |
3.2 WHE
|
5.0 WHE |
275/195 |
|
OFP 160 |
160 – 180 tons |
4.5 WHE |
6.5 WHE |
300/210 |
|
OFP 336 |
336 – 350 tons |
8.6 WHE |
12.0 WHE |
570/400 |
Project Oily Fish plant
Oily Fish Plant 24 (OFP 24)
Installed in Tunisia capacity 24-30 tons raw material input / 24 hrs.
Oily Fish Plant 55 (OFP 55)
Installed in Solomon, capacity 55-60 tons raw material input / 24 hrs.
Oily Fish Plant 90 (OFP 90)
Installed in Pakistan, capacity 90-100 tons raw material input / 24 hrs.
Oily Fish Plant 120 (OFP 120)
Installed in Vietnam, capacity 120-140 tons raw material input / 24 hrs.
Oily Fish Plant 160 (OFP 160)
Installed in Pakistan, capacity 160 -180 tons raw material input / 24 hrs.
Oily Fish Plant 336 (OFP 336)
Installed in Russia, capacity 336 – 350 tons raw material input / 24 hrs.
ACCESSORIES FOR OFP - OILY FISH PLANT
Cooker
Dryer
Fish hogger
Press
