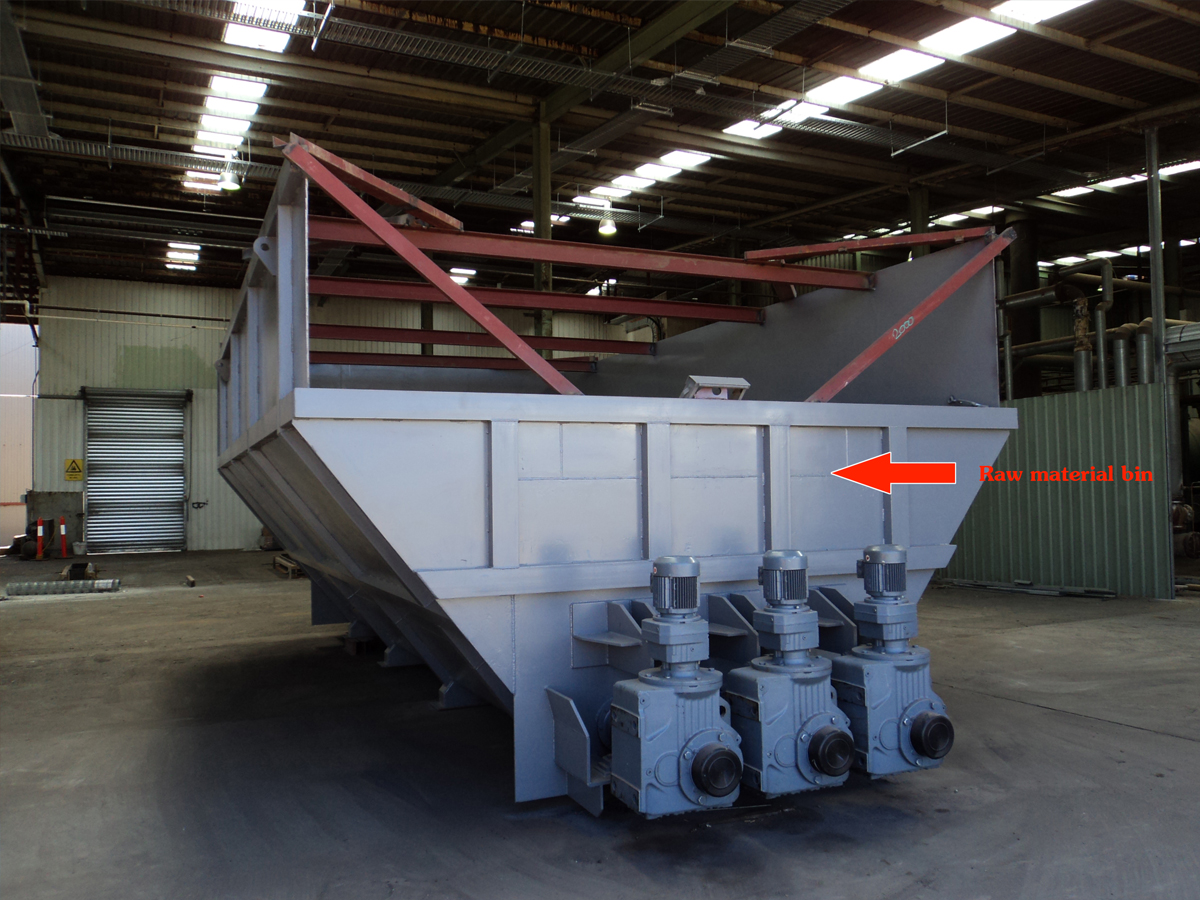

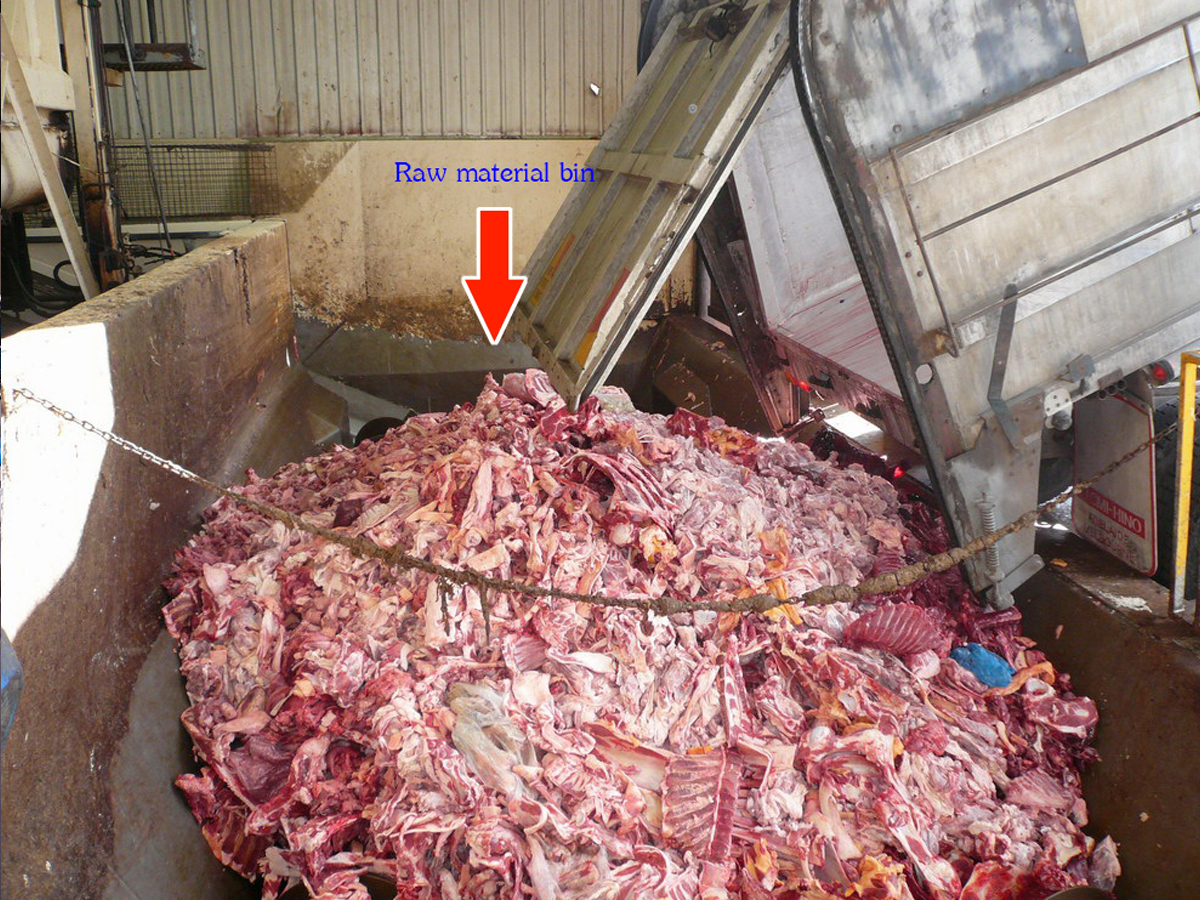

RAW MATERIAL BIN
A & S THAI WORKS CO., LTD

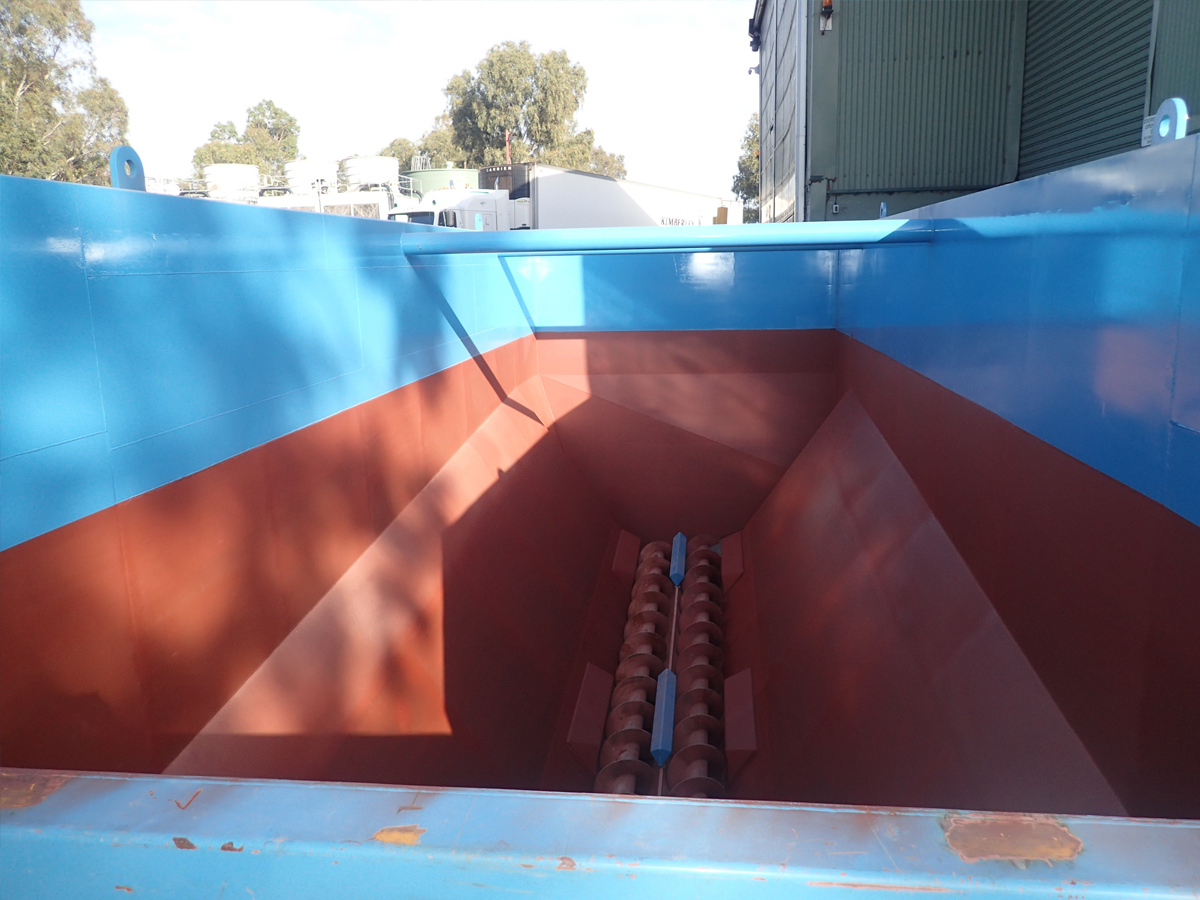

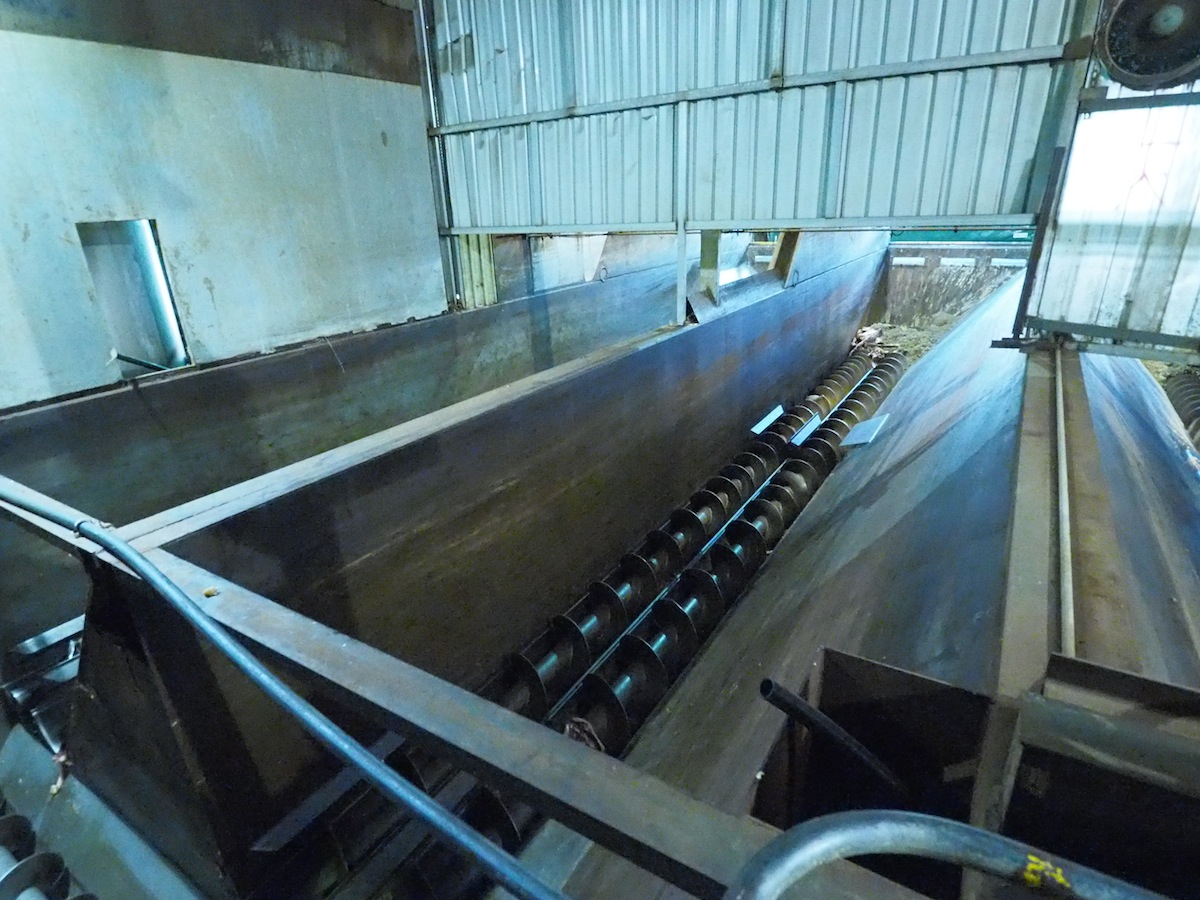

The ASTW RAW MATERIAL BIN AND SCREW CONVEYOR is especially designed for the storage and transportation of material from one process step to the next. The size of the raw material bin and screw conveyor varies from approximately 15 m3 – 120 m3 and screw conveyor langth 2 metres to 20 metres. The screw diameter is as standard Ø250, Ø300, Ø350, Ø400 and Ø500
The Raw material bin and screw conveyor is used in the following industries:
- Rendering
- Slaughtering
- Pet food
- Fish meal
- Shrimp meal
Beyond the actual transportation, the screw conveyor can also accomplish the following tasks:
- Pre-heating
- Cooling by means of air or water
- Straining of fats or water
The raw material bin and screw conveyor can be manufactured in stainless steel, mild steel, or in a combination of the two, depending on the type of material to be transported.
Technical Specification: ASTW LEAN FISH PLANTS (LFP) – the figures are estimates
| Plant size | Capacity tons input per 24 hr | Storage |
|---|---|---|
|
OFP 24 |
3 tons |
5 m³ |
|
OFP 55
|
6 tons |
7 m³ |
|
OFP 90 |
10 tons |
– |
|
OFP 120 |
15 tons |
–
|
|
OFP 160 |
21 tons |
30 m³ |
